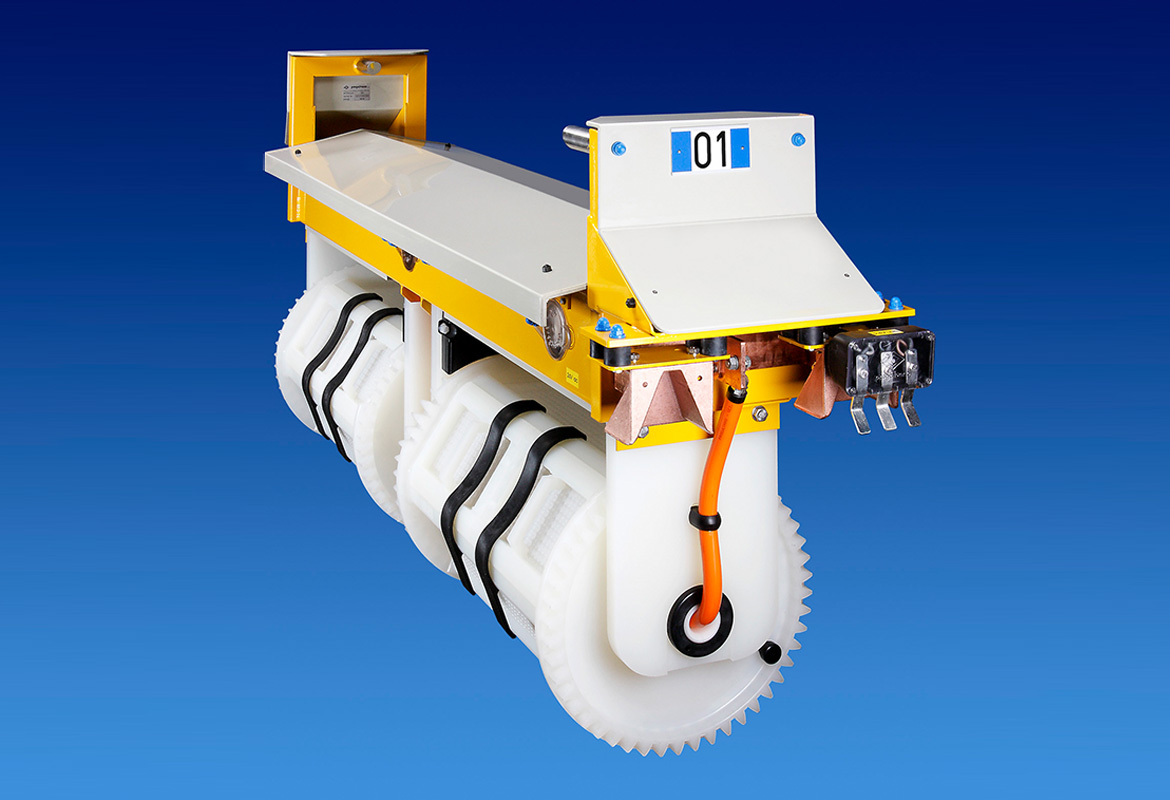

TWIN ROTOR BARREL

Progalvano TWIN rotor barrel maximise the volume of processing materials thus minimizing processing times. Using these barrel units in a plating line ensures high quality while doubling the output. Last but not least, twin rotor barrels can be easily used in mixed plants (barrel and rack).

Technical features:

• Can take loads of up to 500 kg
• For peak temperatures up to 100°C
• Non-dipped portion of the frame = Stainless steel AISI 304 with hepoxidic paint
• Dipped portion of the frame = stainless steel AISI 316 and PP
• More than 30 different versions
• Modular structure reinforced with welded ribbing on the stainless steel frame

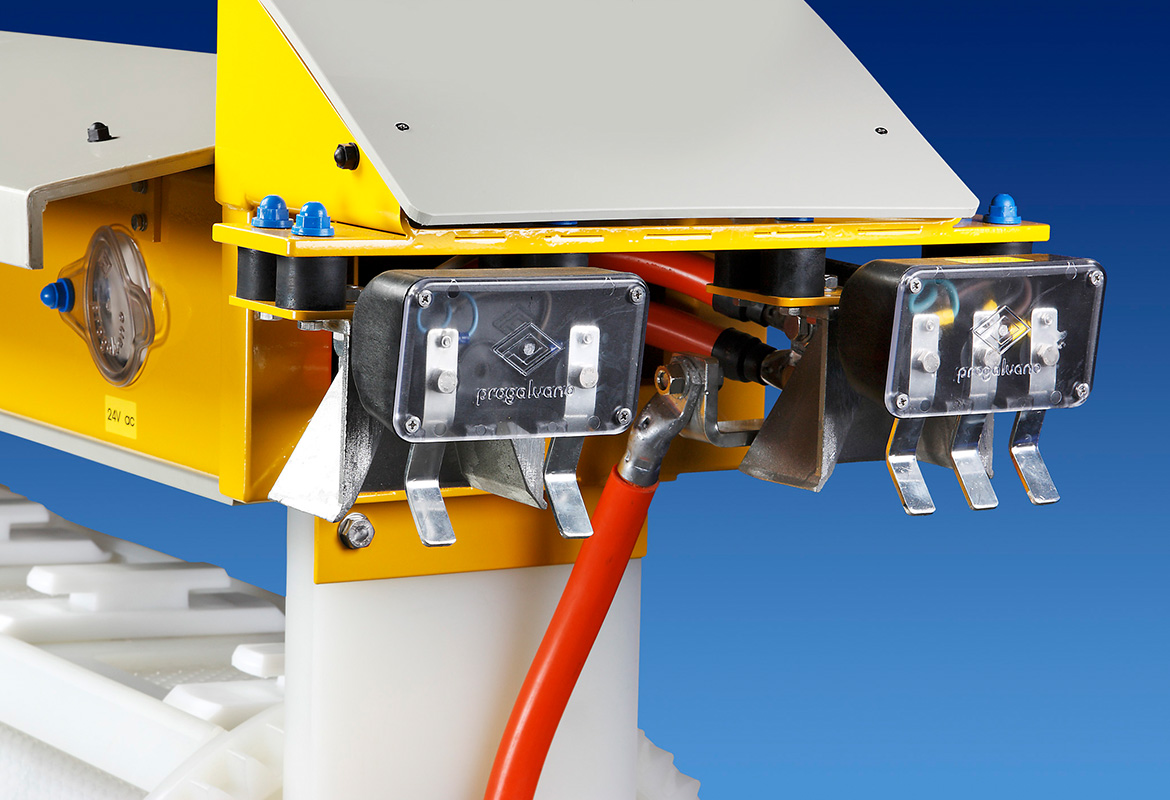

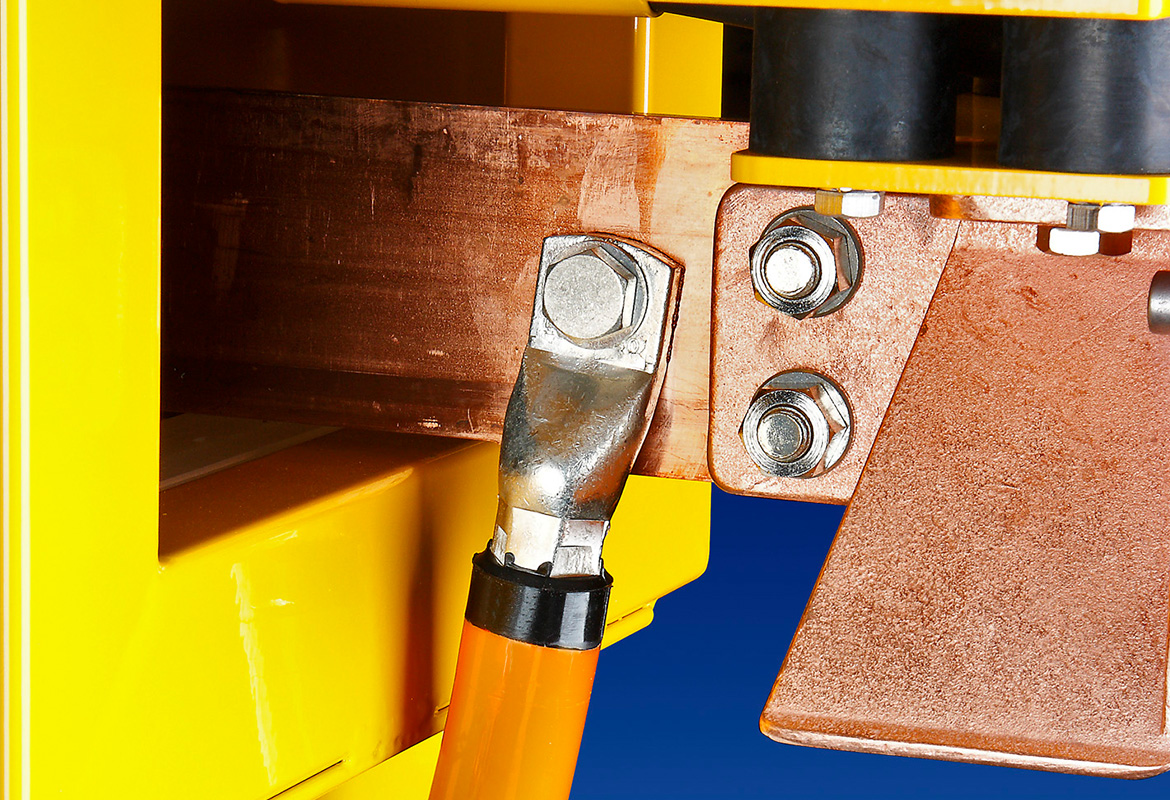

• Tank to barrel cathodic contact (wedge-bell type)
• Fully customisable
• Available with automatically opening door
• Maximum reliability and ease of maintenance
