DE-OILING CENTRIFUGES

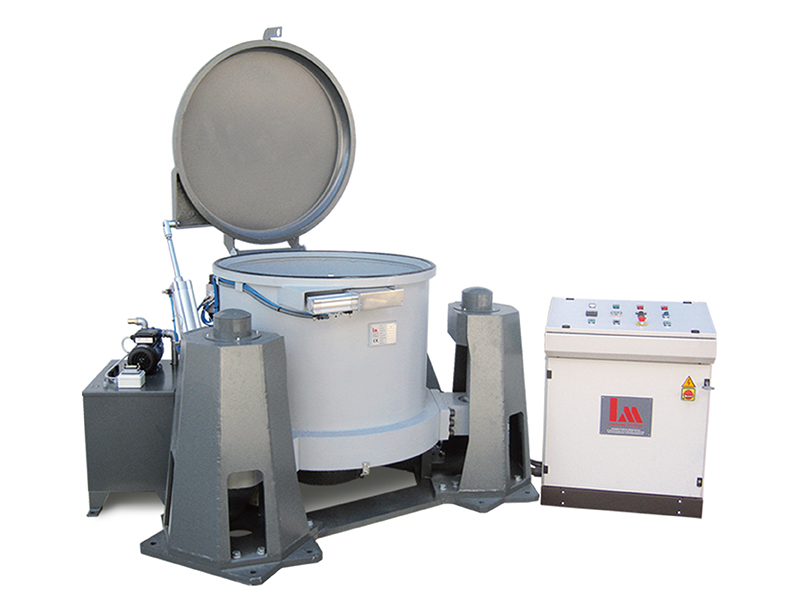

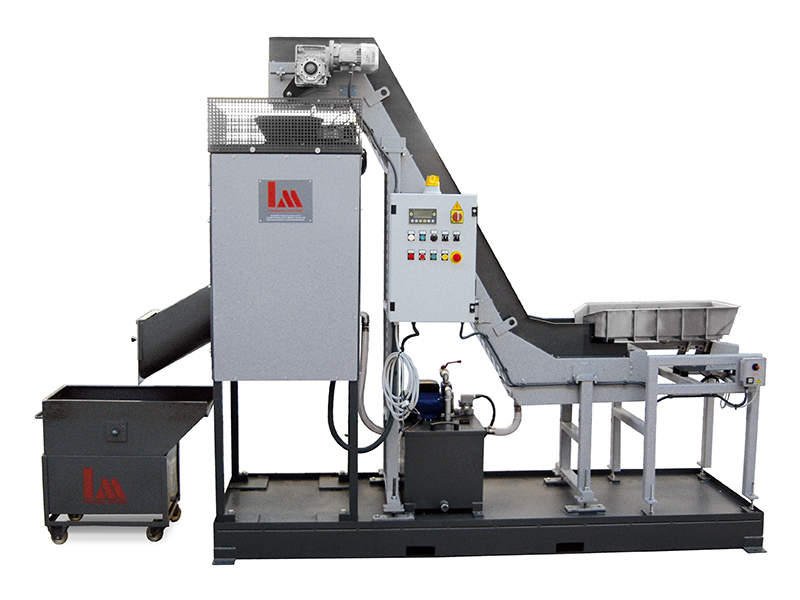

VERTICAL DE-OILING CENTRIFUGES

These centrifuges are employed for the de-oiling of small metal parts.

They consist of a removable, auto-balancing stainless steel basket,

for drying and de-oiling of small metal parts.

The oil is extracted from the parts automatically and in a short time through centrifugation.

This process usually takes place before the washing and drying operations.

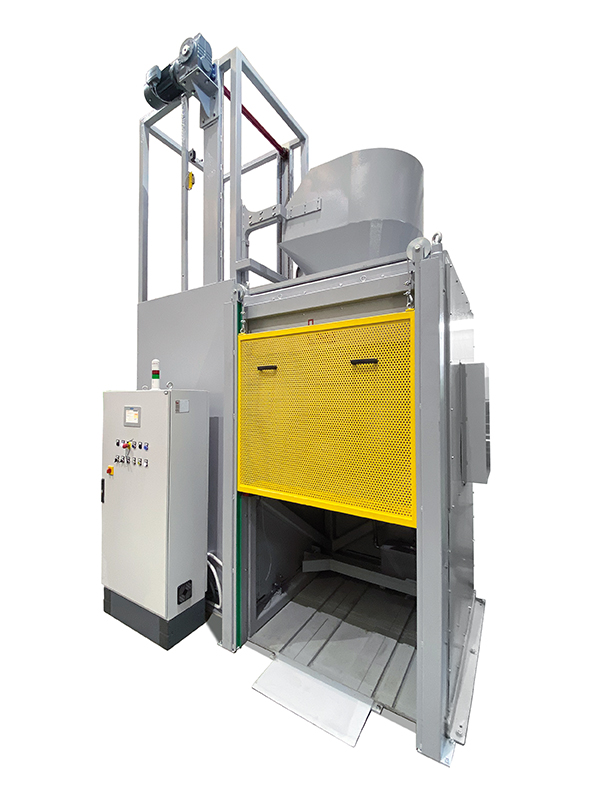

Operation: the swarf, introduced through the feed hopper, fall directly on the bottom of the basket and

are pushed upwards by the centrifugal force.

They release lubricant by passing in the filtering sector, then move back to the top edge of the basket

where they are expelled and collected at the bottom of the centrifuge.

Application: the machine can be used for deoiling of various types of swarf such as steel,

brass or aluminium of medium and small size.

It is used for de-oiling of small metal parts, produced continuously by

moulding machines and by Rolling machines.

Loading is done by conveyor belt, unloading by overturning of the basket.

Automatic loading and unloading.

De-oiling system allow automating the process from the step in which you load the material

stored in one bin to the step in which the material is unloaded in another bin.

De-oiling system allow automating the process from the step in which you load the

material stored in one bin to the step in which the material is unloaded in another bin.

De-oiling system allow automating the process from the step in which you load the

material stored in one bin to the step in which the material is unloaded in another bin.

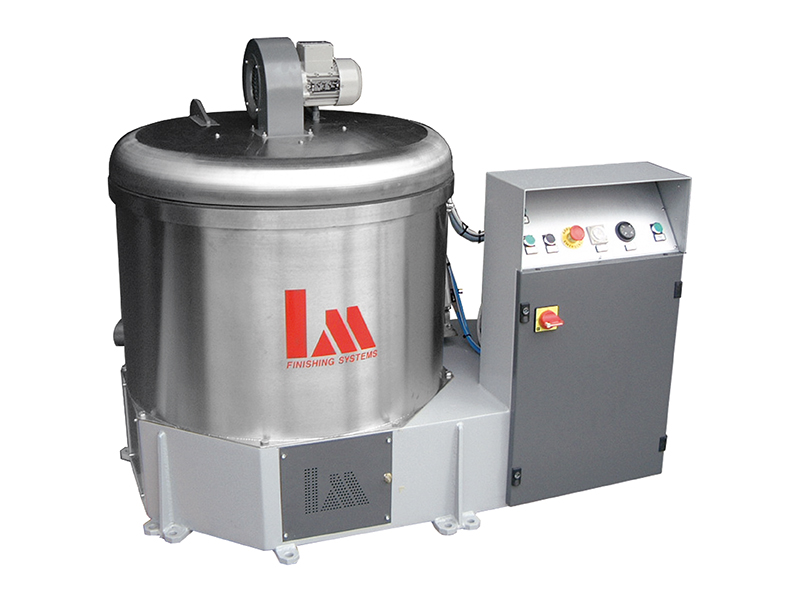

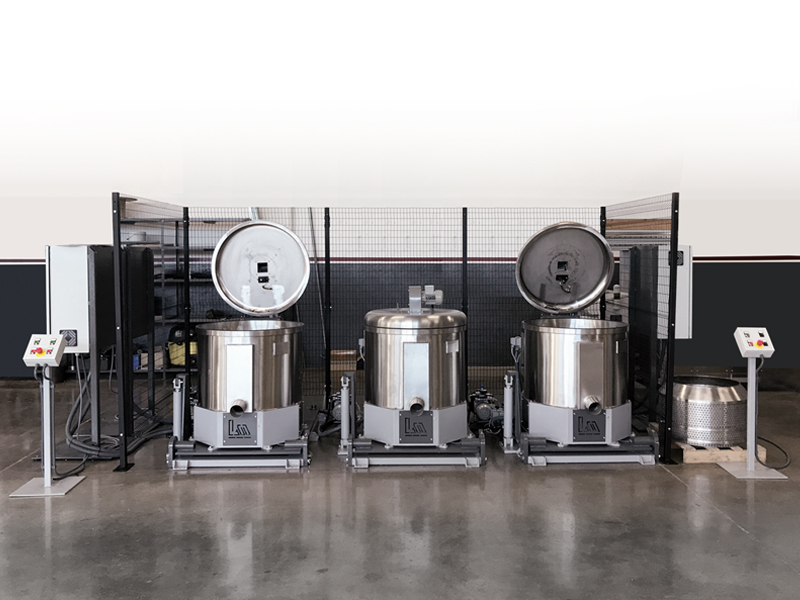

DRYING EQUIPMENT

SPECIAL VERSION

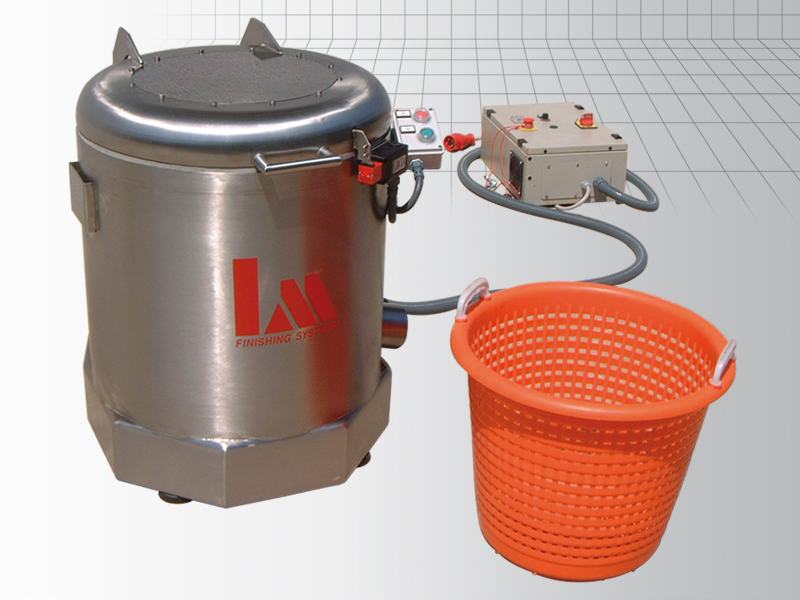

This type of machine consists of a basket where the material to be dried is placed. This basket,

by rotating at high rpm inside a drum, enables the material contained to dry.

The machine can be equipped with fans and electric resistors to obtain hot air recirculation and

thus speed up and improve the drying process.

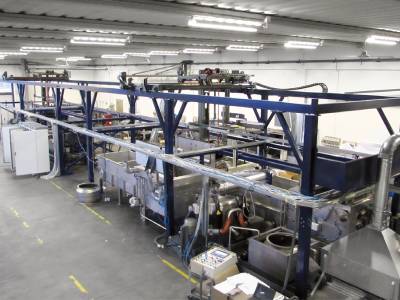

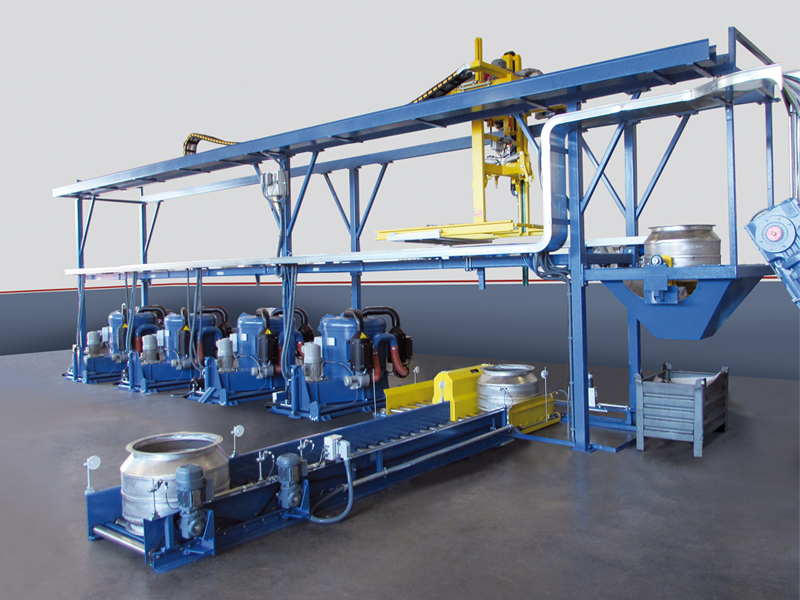

DRYING SYSTEMS

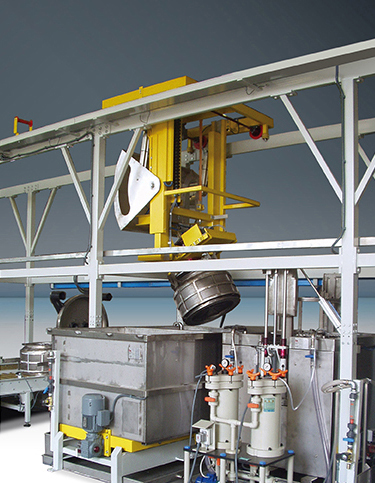

Drying systems with material loading and unloading from specific caissons or directly from the galvanic lines.

PASSIVATION

Passivation system

PHOSPHATING

Phosphating system.

The centrifuges for spray painting are indicated for all types of hardware surface treatment,

from button lacquering to buckles and any other element requiring a surface transparent painting.

The direction and spread of the jet can be adjusted by means of a device located in the cover of the machine.

Painting treatment automatic system with automatic loading and unloading

of material into special containers.

LM Zappo Centrifuges are designed for all types of hardware surface treatment such as the

painting of buttons, buckles, fashion accessories and any other element requiring surface t

ransparent painting. Treatment operations are simple and fast. The material isloaded into baskets

in bulk, with considerable saving of time as it is not necessary to further handle workpieces.

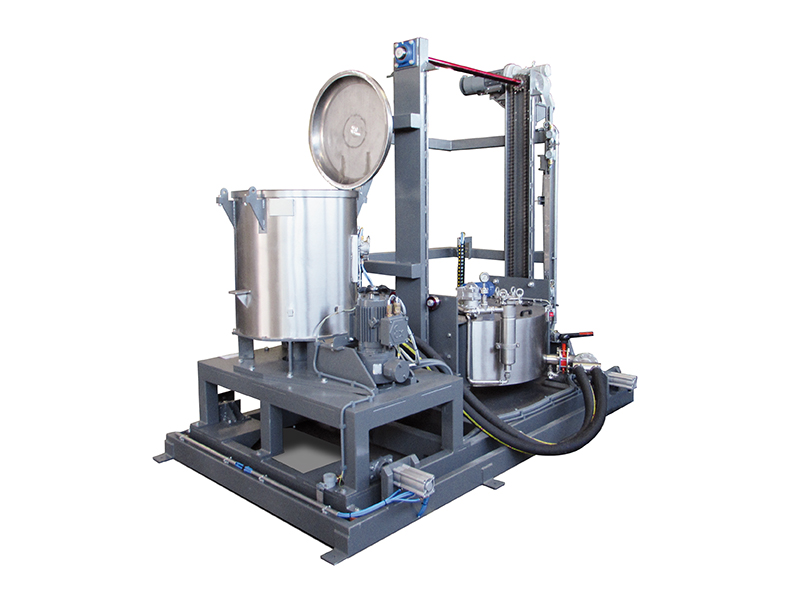

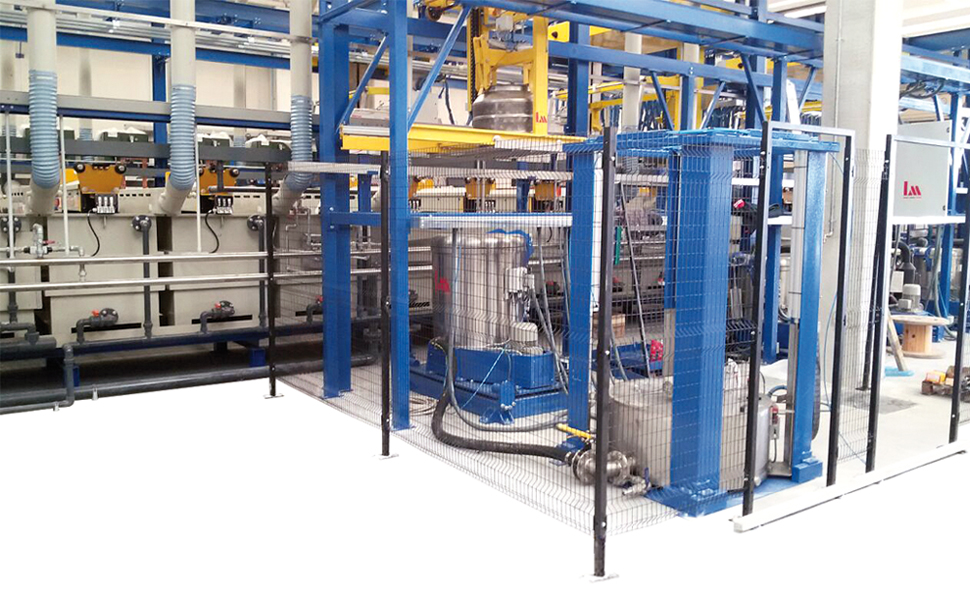

MOD. 360/480/550/660/800 WITH EXTERNAL TANK

The LM Rotary painting machines are indicated for all types of hardware surface treatment,

from the painting of buttons, buckles, fashion accessories and any other element requiring surface

transparent painting. For mechanical parts used in the automotive field, subject to corrosion, the

LM Rotary painting machines are used to treat the Finigard of the Dacromet and for Oiling.

Treatment operations are simple and fast.

The material is loaded into the basket in bulk, with considerable saving of time as it is not necessary to

handle the pieces further. For industrial use, the Rotary painting machines and the

Drying centrifuges are inserted into automatic lines called systems, built by LM. In treating Top-coating

where drying is required by hot air, the Rotary painting machine is combined with a LM Centrifuge where air

can reach temperatures of 120° - 140°. In this case, the material to be treated is introduced into the line and returned at the end of the cycles.

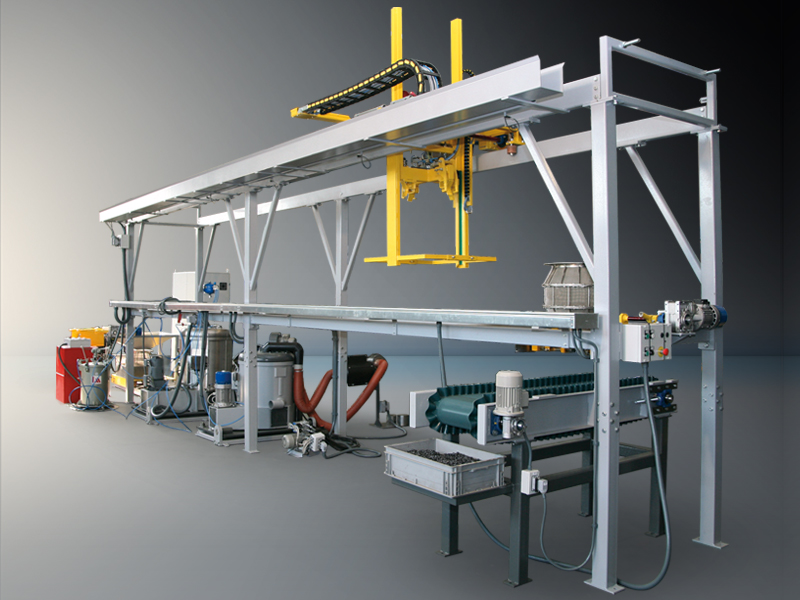

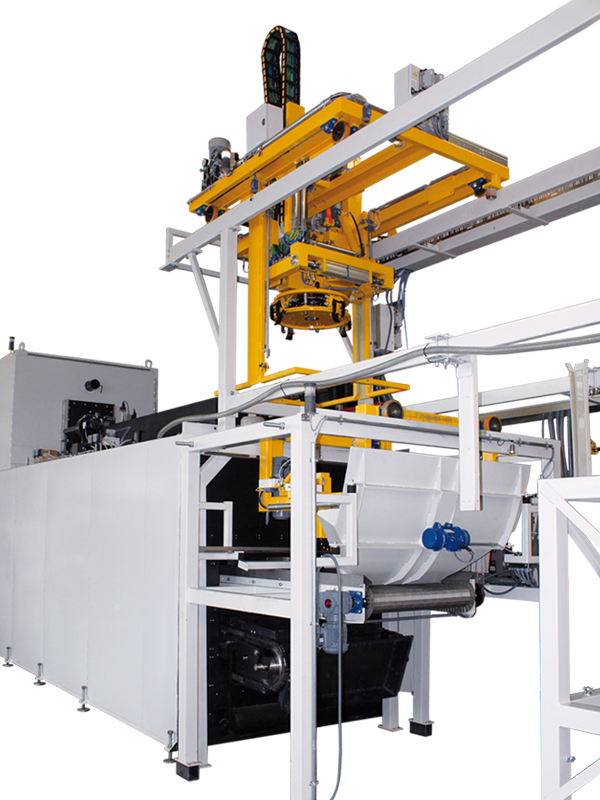

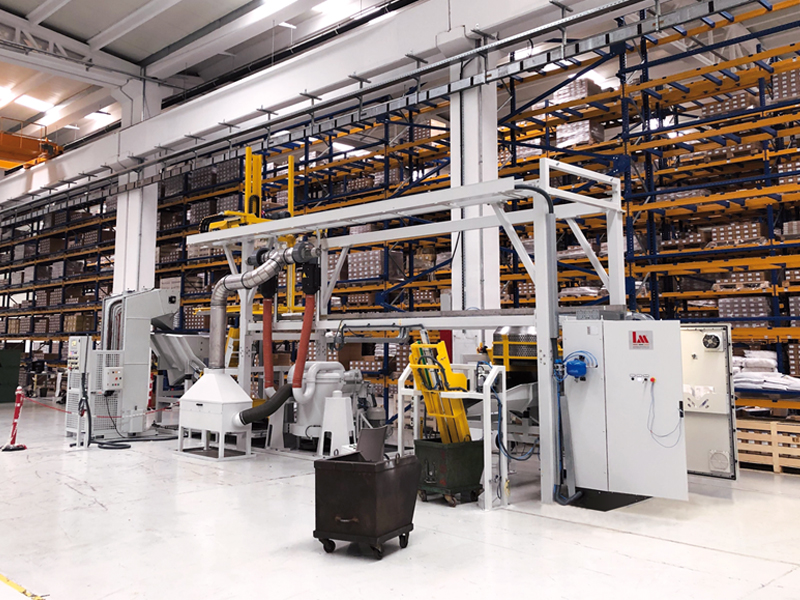

TOP-COAT AND ZINC FLAKE COATING TREATMENT SYSTEMS

Automatic systems designed to apply an external Top-Coat or Zinc Flake coating on

metal hardware contained in baskets or metal parts housed in specific frames.

TOP-COAT AND DRYING TREATMENT SYSTEMS

Automatic systems designed to apply an external Top-Coat or Zinc Flake coating on

metal hardware contained in baskets or metal parts housed in specific frames.

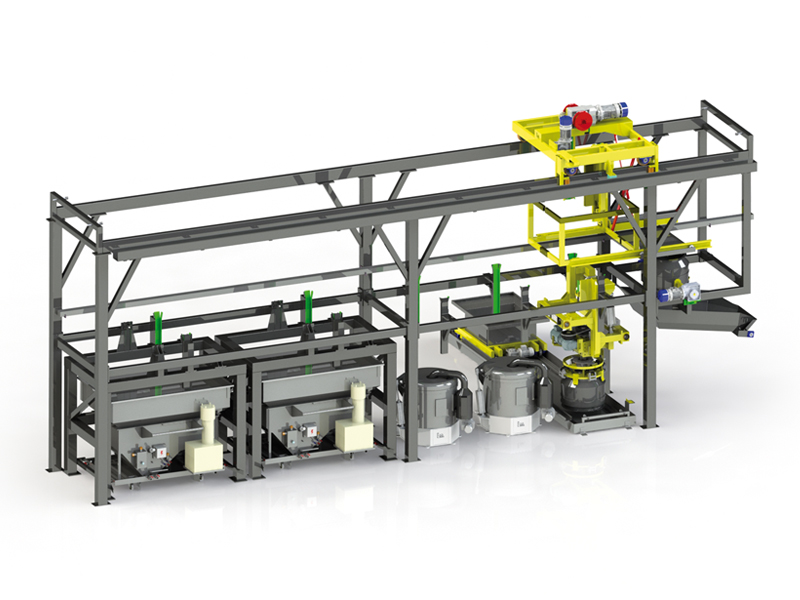

COATING

Automatic drying and postgalvanising treatments.

Application:

Sealing

Passivation

Rinsing

Oiling

LOADING SYSTEMS / BARREL LOADERS

Depending on the type of plant,  different systems can be used to load the  materials to be treated. In electroplaters,

bucket loaders are used for unloading,  whereas for caissons tipping elevators  are used. In addition,

unloading systems  equipped with vibrating hoppers or  conveyor belts for materials’ dosage

are available. For more delicate parts,  the latter can include a device reducing  gaps at transit points to

smoothly convey  materials into the special caissons.

Depending on the type of plant, different systems can be used to load the materials to be treated.

In electroplaters, bucket loaders are used for unloading, whereas for caissons tipping elevators are used.

In addition, unloading systems equipped with vibrating hoppers or conveyor belts for materials’ dosage are available.

For more delicate parts, the latter can include a device reducing gaps at transit points to smoothly convey materials into the special caissons.

Depending on the type of plant, different systems can be used to load the materials to be treated.

In electroplaters, bucket loaders are used for unloading, whereas for caissons tipping elevators are used.

In addition, unloading systems equipped with vibrating hoppers or conveyor belts for materials’ dosage are available.

For more delicate parts, the latter can include a device reducing gaps at transit points to smoothly convey materials into the special caissons.

Depending on the type of plant, different systems can be used to load the materials to be treated.

In electroplaters, bucket loaders are used for unloading, whereas for caissons tipping elevators are used.

In addition, unloading systems equipped with vibrating hoppers or conveyor belts for materials’ dosage are available.

For more delicate parts, the latter can include a device reducing gaps at transit points to smoothly convey materials into the special caissons.

Depending on the type of plant, different systems can be used to load the materials to be treated.

In electroplaters, bucket loaders are used for unloading, whereas for caissons tipping elevators are used.

In addition, unloading systems equipped with vibrating hoppers or conveyor belts for materials’

dosage are available. For more delicate parts, the latter can include a device reducing gaps at

transit points to smoothly convey materials into the special caissons.

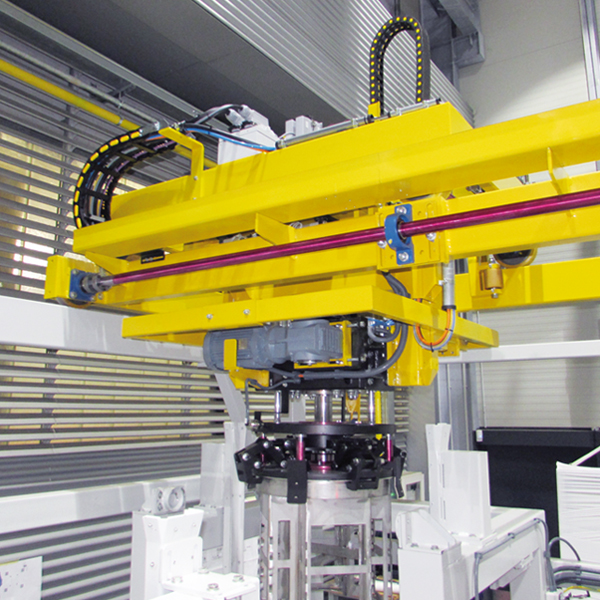

Enables movement of a basket from one station to the other inside an automatic system.

Depending on requirements, it is also possible to integrate a pneumatically operated drip tray into the truck.

Some trucks can also be equipped with tipping and basket rotation devices.

Enables movement of a basket from the upper trolley pick-up axis to a position which enables the

material to be loaded inside it.

Treatment tanks are filled with a specific liquid which is used to chemically/physically treat

(e.g. Top- Coating, Phosphating, Passivation, Galvanising, etc.) the materials contained in

baskets via impregnation. Tanks are made of different materials (AISI 304, AISI 316, Polypropylene, etc..)

and may be integrated with a liquid heating, cooling and movement system.

Treatment tank with internal swing for sealing impregnation, top-coating and passivation.

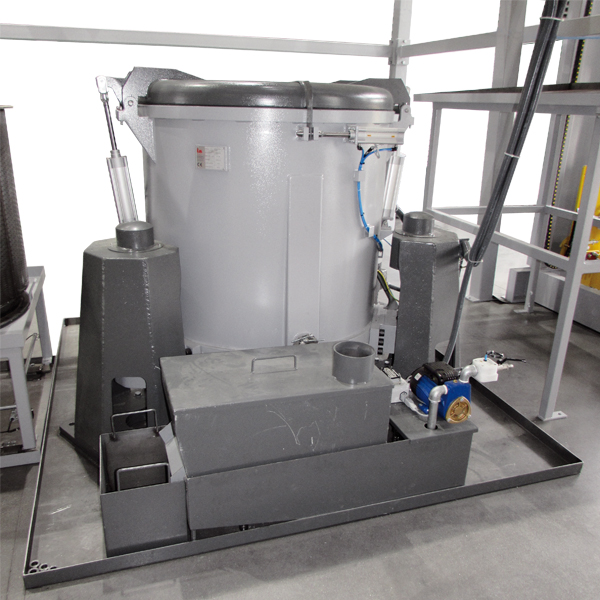

They are bases on which are fastened the centrifuges which must be tilted to balance and mix,

the material inside the basket.

Tilting occurs via an oil hydraulic system with hydraulic pistons.

The range of containers offered is very wide and they are often customised based on customer needs.

The basket diameter (270 - 360 - 480 - 550 - 660 - 800 - 950 mm) defines the size of the centrifuges or machines

where the baskets will then be placed. They are generally made of perforated sheet and/ or provided with

electro-welded mesh, with flat or rounded bottoms, with or without polyurethane coating, etc.
