SPECIFICATIONS
Flow Rate max
Head max (m)
Motor (kw)
IN/OUT D (mm)
T max (°C)
Weight*
* It depends on the motor
CONNECTION TYPE

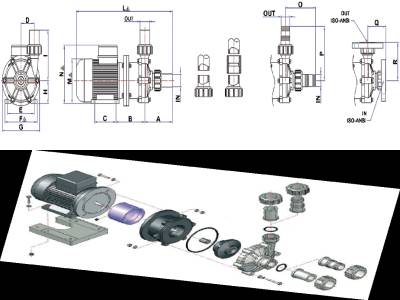

Dimensions:
It changes according with motor supplier
Performans Eğrisi 50 Hz - DDS 2800
Performans Eğrisi 60 Hz - DDs 3400
10 Motor
11 Bracket with rear casing & shaft
13 Base plate
16 Discharge connection
16A Discharge stub
16B Discharge hosebarb
17 Discharge nut
18 Suction connection
18A Rigid piping suction
18B Suction stub
19 Suction nut
21 Pump housing
21A Suction O-Ring
21B Discharge O-Ring
22 Impeller assembly
22A Impeller bearing
22B Impeller & magnet
26 Pump housing O-Ring
27 Drive magnet
